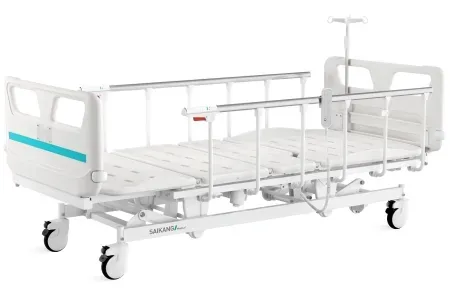

V8w5c Electric Bed (SKD-C)
Brand: Saikang Medical | Category: Medical Equipment
The V8w5c uses an integrated PP bed platform split into four to five sections so that each section can be installed and maintained independently. Raising the back part enlarges the seat area, which adds patient comfort and reduces depression of the sponge at the seat panel. Wall bumper wheels and 5 inch covered castors with TPR tyres are part of the specification.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size (LxW) | 2085x1020 mm |
| Mattress platform | 1925x900 mm |
| Safe working load | 250 kg |
| Height adjustment | 455-745 mm |
| Back-rest adjustment | 0-75° (±5°) |
| Knee-rest adjustment | 0-46° (±5°) |
| Trendelenburg | 0-12° |
| Reverse trendelenburg | 0-12° |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
