WGCM: Unit to Study a Worm Gear Cutaway Model
Brand: EDIBON | Category: Scientific & Laboratory Equipment

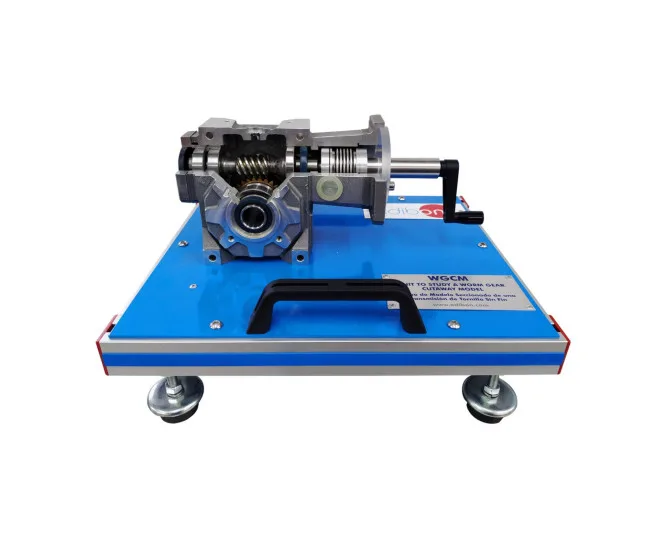

A helical worm screw and a circular cogwheel can be studied with the Unit to Study a Worm Gear Cutaway Model, "WGCM", designed by EDIBON.
Published teaching-model details
| Parameter | Value |
|---|---|
| Housing material | Steel |
| Worm screw external diameter | 25 mm |
| Gear external diameter | 60 mm |
| Unit dimensions | 370 × 310 × 250 mm approx. |
| Unit weight | 10 kg approx. |
Selected construction and installation values for the WGCM cutaway teaching model from brochure pages 2–4. This is a model for observing a transmission mechanism; the data does not establish suitability as an industrial production drive. Confirm the complete teaching set and safety instructions. Checked 2026-09-29.
