Work Tube Accessories
Brand: Carbolite Gero | Category: Nanotechnology

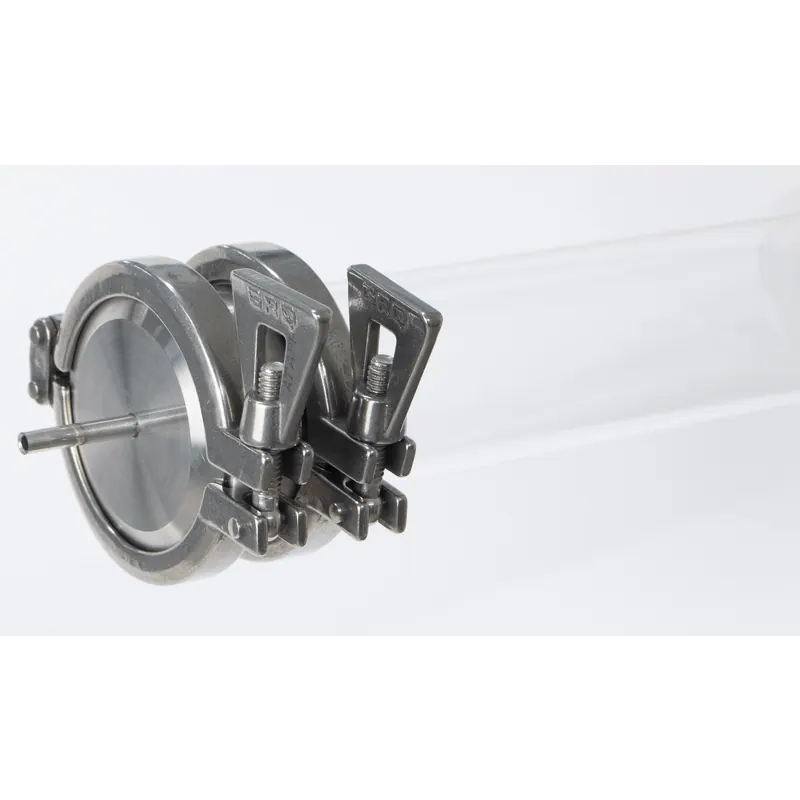

The range of work tube accessories offered with Carbolite Gero tube furnaces, covering ceramic insulation plugs, radiation shields and stainless steel end seals. End seals contain a modified atmosphere and allow work under vacuum.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | End seals for work tube outside diameters 32, 46, 60, 86, 100, 150 and 200 mm |
| Specification | Vacuum levels of 10-6 mbar are possible with end seals on extended work tubes |
| End seal fittings | blank seal, gas nozzle, vacuum flanges NW16, NW25, NW40 or ISO-K 63 |
| Specification | Thermocouple glands available in 1.5 mm, 3 mm and 10 mm |
| Specification | Radiation shields in metal up to 1200 deg C and in ceramic above that temperature |
| Specification | Ceramic insulation plugs reduce heat loss and improve temperature uniformity |
