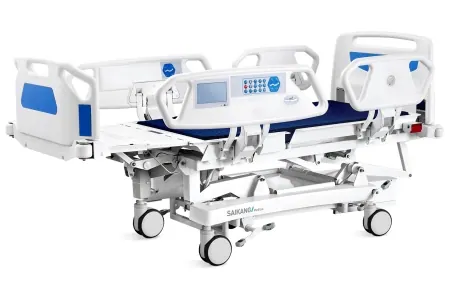

X9x Electric ICU Bed (SKD-CV)
Brand: Saikang Medical | Category: Medical Equipment
Electric ICU bed with a patented 75 mm backrest retraction, a one button nursing position and cardiac chair positioning. A one button emergency stop halts all movement, the screen stores patient records and weight readings, and the bed runs on 6 inch double side castors with central locking.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External size(LxW) | (2120-2320)×1010 mm |
| Mattress platform | (1750+200)×830 mm |
| Safe working load | 250 kg |
| Height adjustment | 550-950 mm |
| Back-rest adjustment | 0-75°(±10°) |
| Knee-rest adjustment | 0-20°(±10°) |
| Reverse trendelenburg | 0-18°(±2°) |
| Trendelenburg | 0-18°(±2°) |
| Leg extension board Adjustment | 0-68°(±2°) |
| Angle indicator | 0-15° |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
