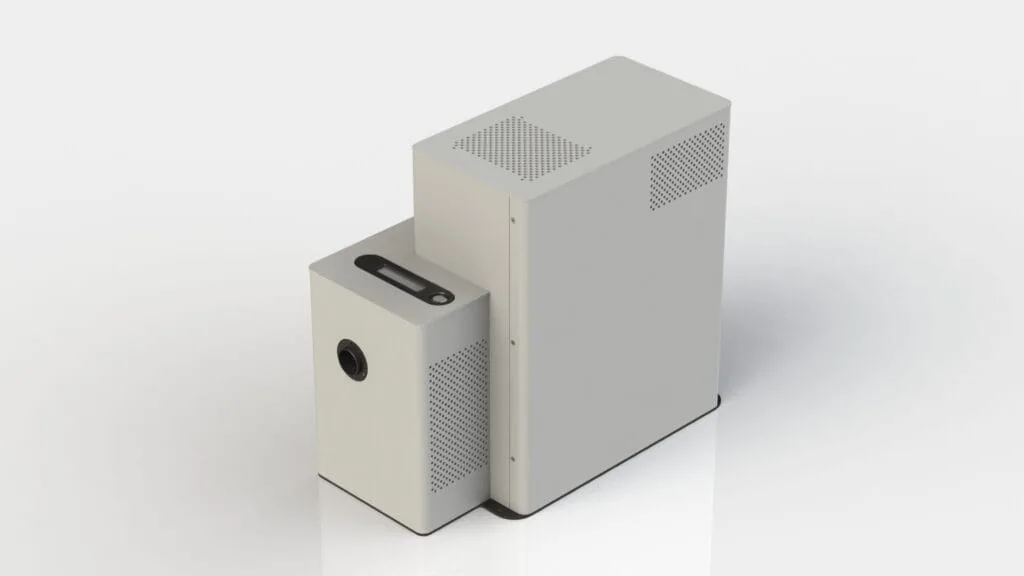

Xe1: 450 W Xenon Arc Lamp
Brand: Edinburgh Instruments | Category: Nanotechnology
Ozone free 450 W xenon arc lamp emitting continuous radiation from 230 nm to 2600 nm, used as the steady state excitation source on the FLS1000. The integrated power supply displays lamp voltage and current with an hour meter, and an off-axis ellipsoidal mirror refocuses the emission into the monochromator.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Lamp power | 450 W |
| Emission range | 230–2,600 nm |
| Operating mode | Continuous wave |
| Power supply | Integrated, with voltage/current display and hour meter |
Selected manufacturer data. Wavelength, pulse mode, gas fill, optical alignment and connected spectrometer must match the selected configuration; pulse-source data must not be applied to a continuous-wave lamp. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Edinburgh Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
