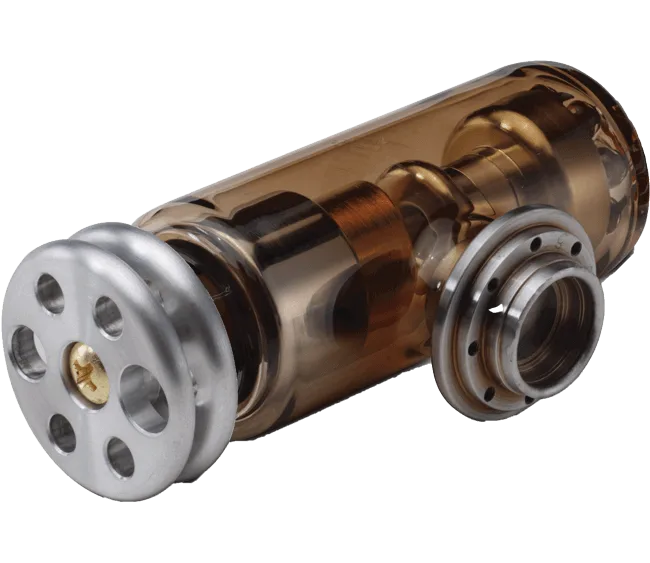

1501 Series Glass X-ray Tube
Brand: Oxford Instruments | Category: Nanotechnology
Rated at 50kV and 50-75W, the 1501 Series answers the need for higher current at lower operating potentials while keeping high flux density and continuous operation. It serves medical imaging, XRF and industrial inspection or non-destructive testing that demands high resolution, covering PCB assembly, battery, plastic, metal and mechanical parts. A stainless steel, lead lined package filled with dielectric oil is available for maximum X-ray shielding and heat dissipation, and the series comes in a range of spot sizes and targets. Ultra-high vacuum held by the Oxford Instruments getter technology supports long tube life.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range | 4-50kV |
| Maximum Power | 50-75W |
| Maximum beam current | 2.5mA |
| Maximum Filament Current | 2.40A |
| Filament Voltage | 3.75V (Nominal) |
| Target Material | Rh, Cr |
| Spot Size | 125µm (nominal per IEC60336,NEMA XR5-1999) |
| Cone of Illumination | 22° Minimum |
| Spot to Window Spacing (FOD) | 30.8 mm ± 1mm (1.2") |
| Window material and thickness | Be @ 127µm |
| Flux & Current Stability | ≤ 0.2% over 4-hour period |
| Duty Cycle | Continuous |
| Ambient Temperature Conditions | Operating: 0 to 40°C; Storage: -10°C to 50°C |
| Humidity | 0-95% RH up to 5,000 ft |
| Method of Cooling | Must not exceed 80°C oil temperature. Customer provides enclosure and cooling. |
| X-ray Shielding | Customer must provide enclosure with adequate shielding. Tube emits X-rays in all directions. |
| Dimensions | 81mm L X 47mm W (3.2" L X 1.8" W) |
| Weight | 119g |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
