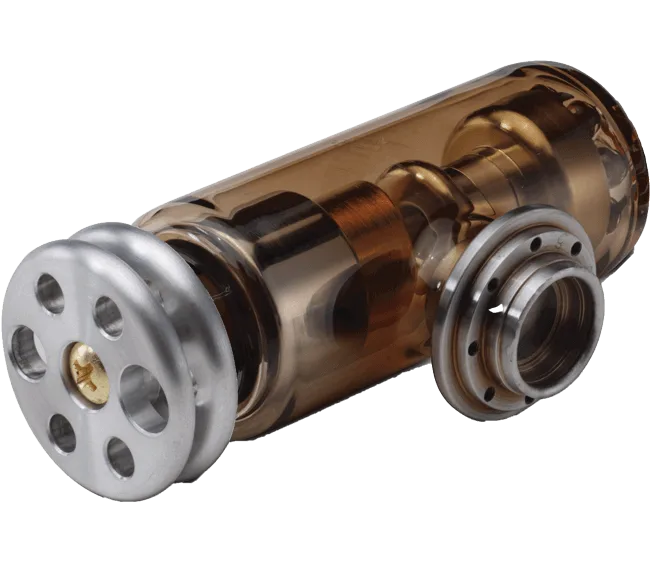

1550 Series Glass X-ray Tube
Brand: Oxford Instruments | Category: Nanotechnology
This 50kV, 50W glass envelope tube pairs Oxford Instruments high stability, high intensity technology with grid controlled variable focus, so it produces very small focal spots. That makes the 1550 Series a good match for industrial inspection and non-destructive testing that needs high resolution, including PCB assembly, battery, plastic, metal and mechanical parts inspection, and it also works well with X-ray optics. Supplied in a stainless steel, lead lined package filled with dielectric oil, the same tube becomes the Apogee 5500 Series packaged assembly with high voltage and filament connectors for plug and play operation. Long tube life follows from ultra-high vacuum maintained with the company's getter technology.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage Range | 10-50kV |
| Maximum Power | 50W |
| Maximum Beam Current | 1.0mA |
| Grid Voltage | 0-100V |
| Maximum Filament Current | 1.70A |
| Filament Voltage | 2.0V (Nominal) |
| Target Material | Cu, W, Mo, Co, Rh |
| Spot Size | <50μm (X and Y) |
| Cone of Illumination | 22° |
| Spot to Window Spacing (FOD) | 30.8 mm ± 1mm (1.213") |
| Window Material and Thickness | Be @ 127μm |
| Flux & Current Stability | ≤ 0.2% over 4-hour period |
| Duty Cycle | Continuous |
| Ambient Temperature Conditions | Operating: 0°C to 40°C; Storage: -10°C to 50°C |
| Humidity | 0-95% RH up to 5,000 ft |
| Method of Cooling | Must not exceed 80°C oil temperature. Customer provides enclosure and cooling. |
| X-ray Shielding | Customer must provide enclosure with adequate shielding. Tube emits X-rays in all directions. |
| Dimensions | 81mm L X 47mm W (3.2" L X 1.8" W) |
