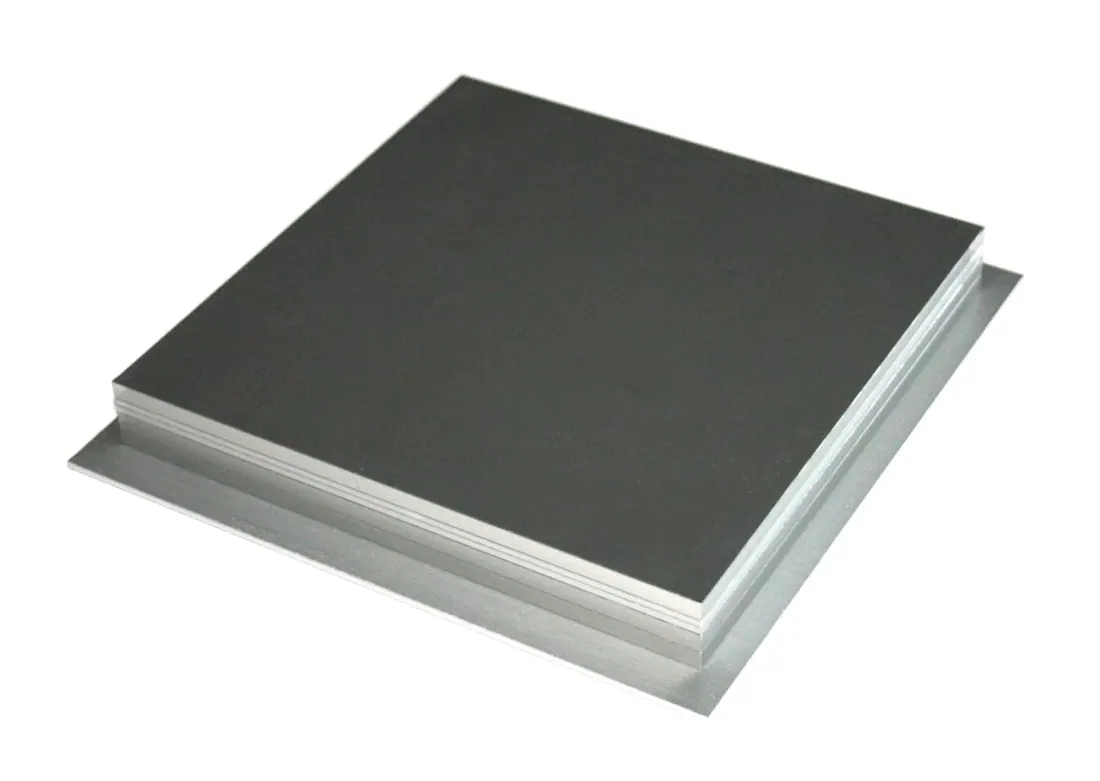

21mm Aluminium Attenuator
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A patient equivalent aluminium attenuator plate for image quality checks on general radiography systems, built to the IEC beam quality standards. The integral mounting plate lets it drop straight into common accessory rails without adding material to the beam.
Technical Specifications
| Parameter | Value |
|---|---|
| Plate | 152.4 x 152.4 mm (6 in x 6 in), 19 mm thick |
| Specification | Permanently attached 2 mm thick aluminium mounting plate |
| Mounting plate dimensions | 168 x 175 mm |
| Specification | Supplied with 4 socket head screws for fastening an optional extra copper filter for use at 100 kV |
| Conforms to IEC 62220-1-1 and IEC 61267 | 2005 |
