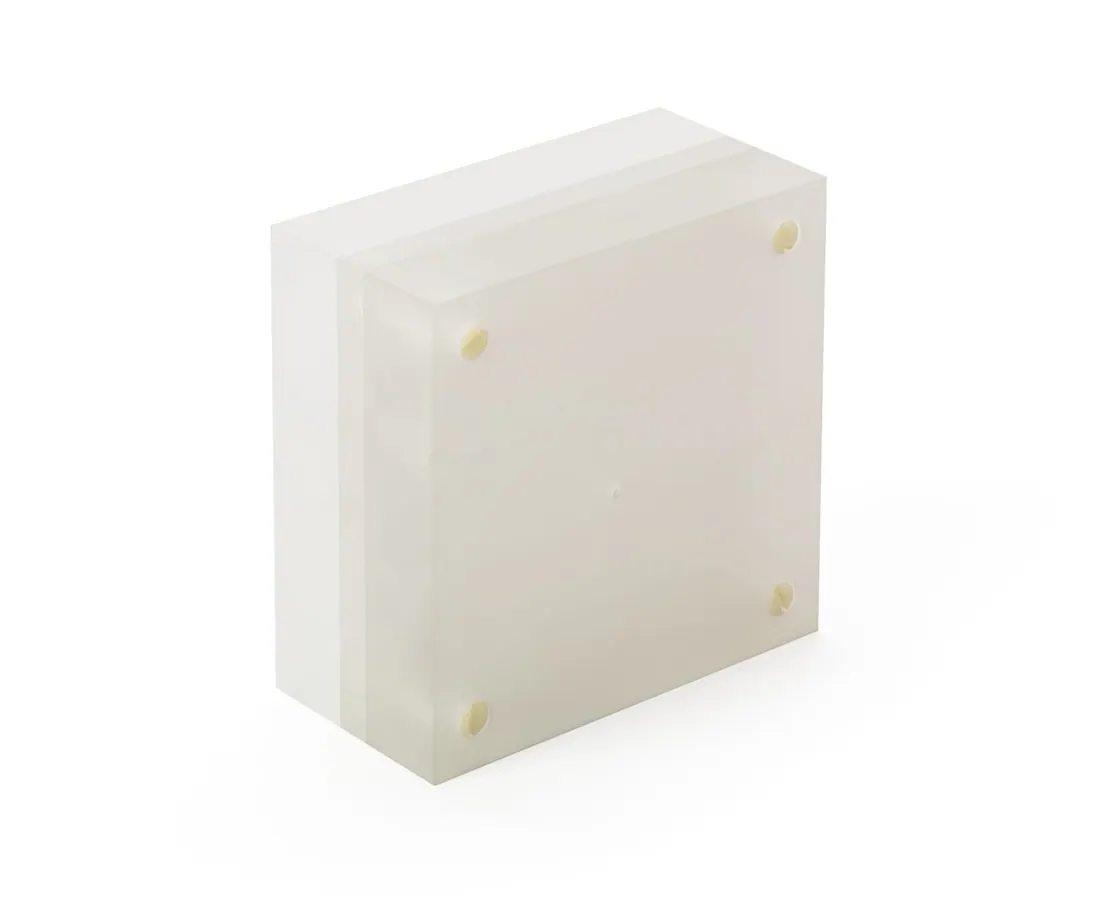

CBCT-150
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A PMMA cuboid phantom for constancy testing of cone beam CT and 3D fluoroscopy systems to DIN 6868-150. Rows of small air holes of decreasing diameter give a direct measure of spatial resolution, and a tripod allows universal positioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | PMMA cuboid 120 x 120 x 60 mm |
| Specification | Rows of 4 air holes of 1.3, 1.0, 0.90, 0.90, 0.90, 0.60 and 0.50 mm diameter |
| Specification | Spatial frequencies 0.38, 0.50, 0.56, 0.63, 0.71, 0.83 and 1.0 mm respectively |
| Specification | Tripod for universal positioning |
| Specification | Conforms to DIN 6868-150 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
