DR-2
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

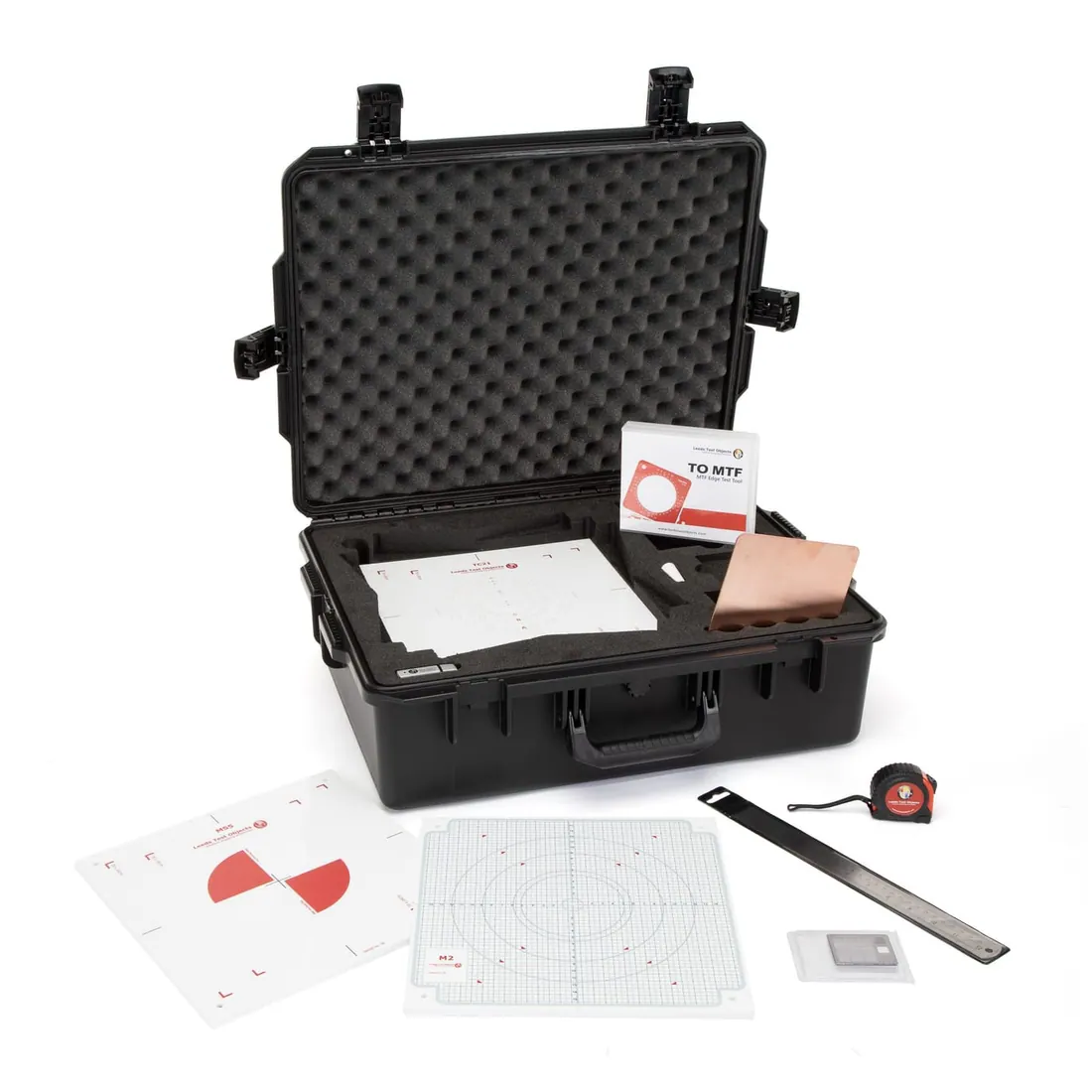

A set of test objects for routine image quality checks on digital radiography systems. It brings together a threshold contrast object, a geometry object, a mesh object and an MTF edge with free software.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | TC 21 threshold contrast test object, 144 details (12 sizes x 12 contrasts) |
| Specification | TC 21 size range 11 mm to 0.25 mm, contrast range 0.00025 to 0.930 at 75 kVp, 1.5 mm Cu filtration |
| Specification | TO M2 geometry test object with cross ruler, grid and beam centring tower |
| Specification | TO MS5 mesh test object, 50 mesh, 0.20 mm wire, 310 micron aperture |
| Specification | TO MTF edge with free software |
