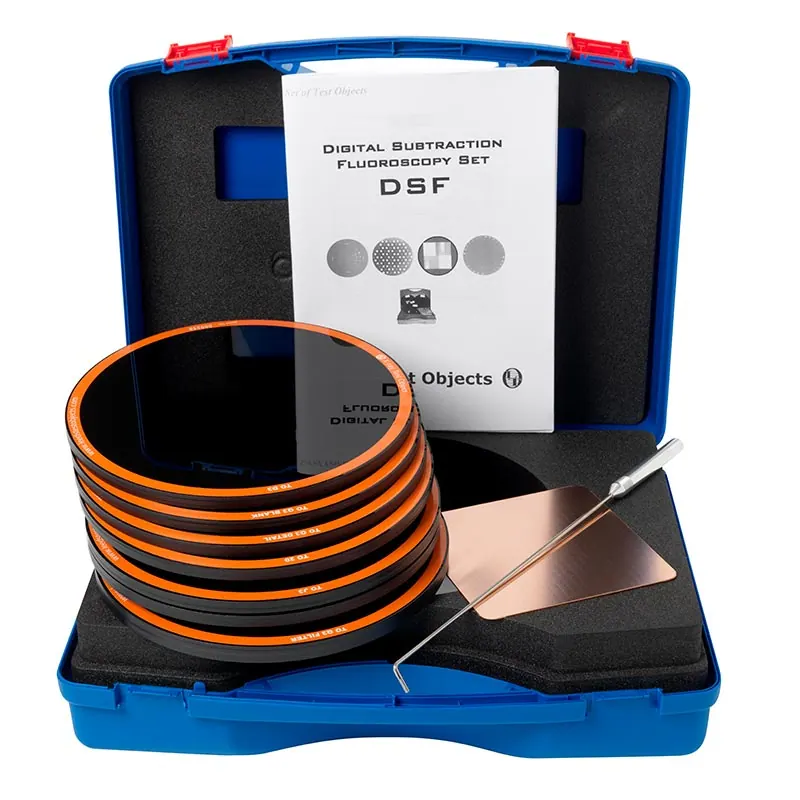

DSF Set
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A set of four test objects supplementary to the SFS set, checking the parameters most relevant to digital subtraction fluoroscopy imaging. After mask images are taken, the image content is changed by manipulating the plates.
Technical Specifications
| Parameter | Value |
|---|---|
| TO J3 | log and linear subtraction, ADC and DAC operation, 10 step linear and 9 step logarithmic transmission wedges |
| Specification | TO J3 also checks operating headroom with a 9 step wedge exceeding the peak reference level |
| TO Q3 | dynamic range of imaging capability, four quadrants of 100%, 33%, 10% and 3.3% relative transmission |
| Specification | TO Q3 quadrants each contain 16 details of 8 mm diameter |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Nuclear Medicine & Imaging
