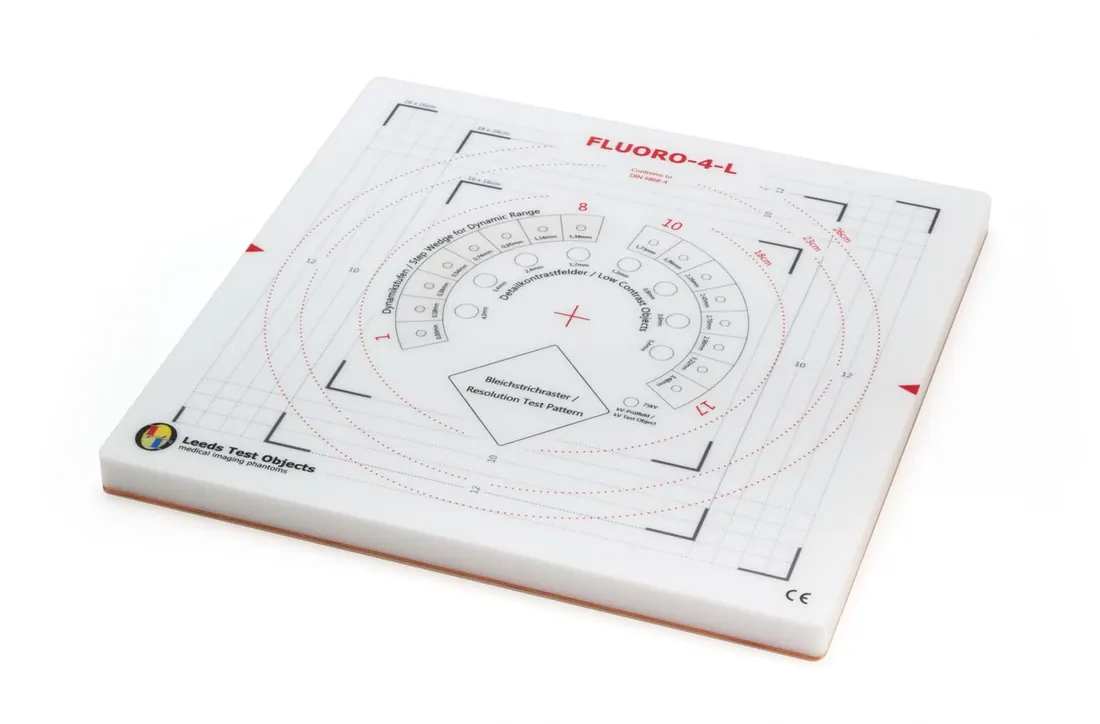

Fluoro 4 / Fluoro 4-L
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
An image quality phantom for digital and conventional fluoroscopy, used at acceptance and then routinely. It carries limiting spatial resolution, low contrast details, a seventeen step copper dynamic range wedge, a kV test area and an unstructured centre marked region.
Technical Specifications
| Parameter | Value |
|---|---|
| Limiting spatial resolution | 0.6 to 5.0 LP/mm |
| Low contrast resolution | 8 details of 10 mm diameter, depths 0.4 to 4.0 mm |
| Dynamic range | 17 Cu steps, each with a central 4.0 mm diameter detail of 2.5 mm depth |
| kV test area | Yb 0.78 mm |
| Available in two sizes | FLUORO-4 200 x 200 mm and FLUORO-4-L 300 x 300 mm |
| Specification | Conforms to DIN 6868-4 and DIN 6868-150 |
