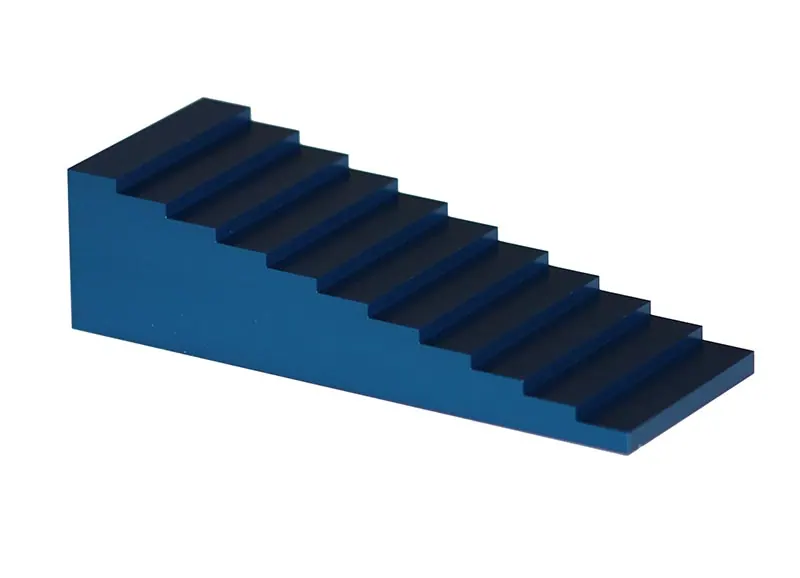

Fluoroscopy Step Wedge
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
An eleven step aluminium wedge for use with fluoroscopy systems, used to check contrast and dynamic range response. The first step is taller than the rest, giving a clear reference point in the image.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 11 step wedge |
| Material | aluminium |
| Overall dimensions | 132 x 50 x 35 mm |
| Specification | Steps 12 mm long x 50 mm wide |
| Step 1 | 5 mm high, other steps 3 mm high |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
