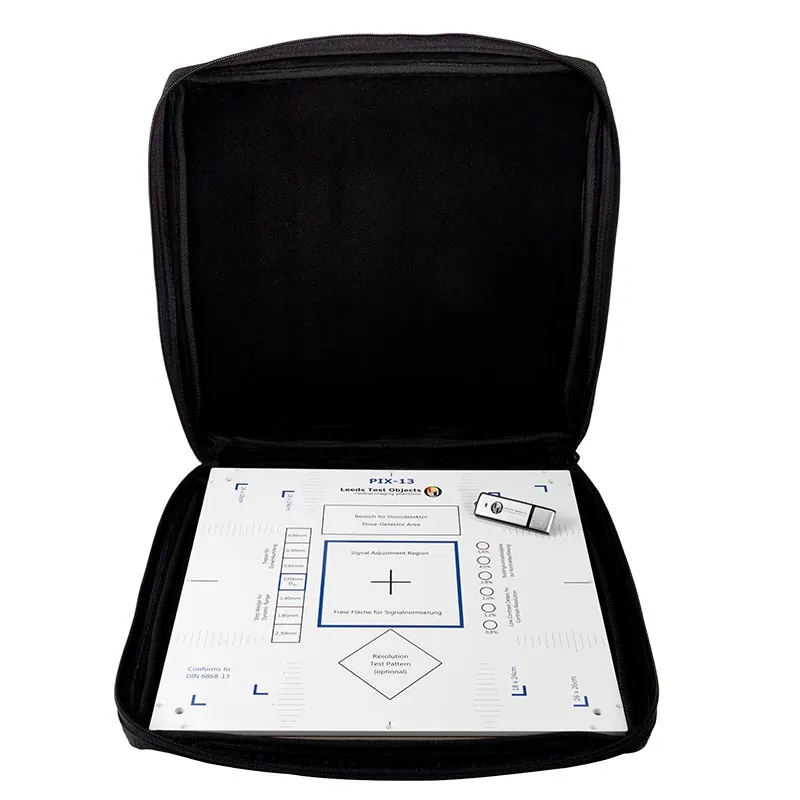

PIX 13
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A digital radiography image quality phantom used at acceptance to set a baseline and then routinely to track any drift. It combines limiting spatial resolution, low contrast details, a copper step wedge for dynamic range and radiopaque alignment markers on one plate.
Technical Specifications
| Parameter | Value |
|---|---|
| Limiting spatial resolution | 0.6 to 5.0 LP/mm |
| Low contrast resolution | 6 details of 15 mm diameter |
| Dynamic range | 7 different thickness Cu steps |
| Specification | Unstructured centre marked area for homogeneity and signal adjustment |
| Specification | Cassette size and x-ray to light field alignment markers, radiopaque |
| Specification | Conforms to DIN 6868-13 |
