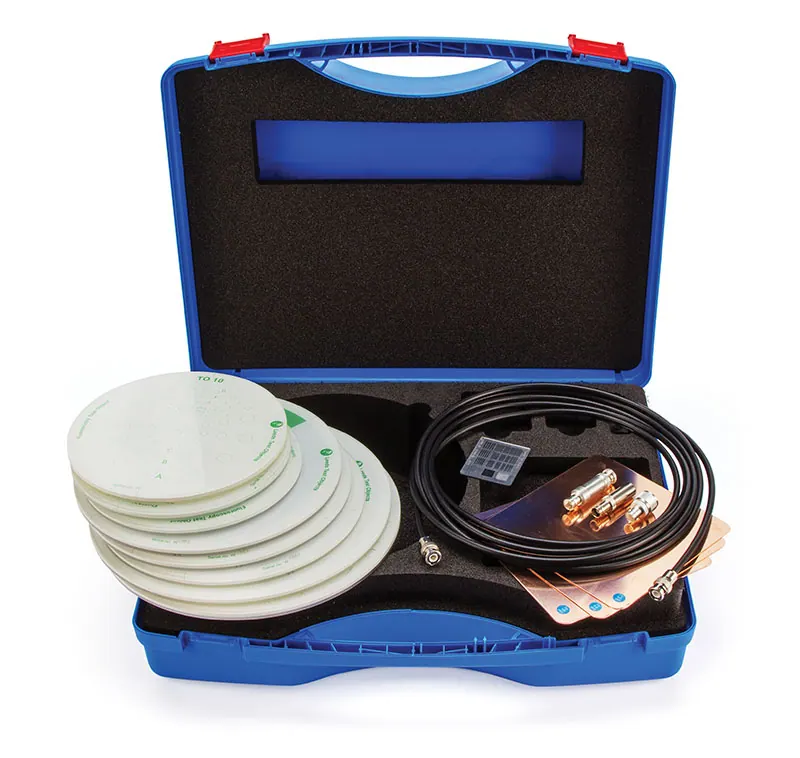

SFS Set
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A set of test objects for annual and commissioning checks on screening fluoroscopy systems. It combines threshold contrast, contrast, greyscale, edge, geometry and mesh test objects with copper filters and a resolution test object.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | TO 10 threshold contrast, TO N3 contrast and TO GS2 greyscale test objects |
| Specification | TO E1 edge test object and TO M1 geometry test object |
| Specification | TO MS1, TO MS3 and TO MS4 mesh test objects |
| Specification | Resolution test object, 0.5 to 5.0 LP/mm |
| Specification | 1.0 mm copper filter x 1 and 0.5 mm copper filter x 2 |
| Specification | Video cable and adaptor included |
