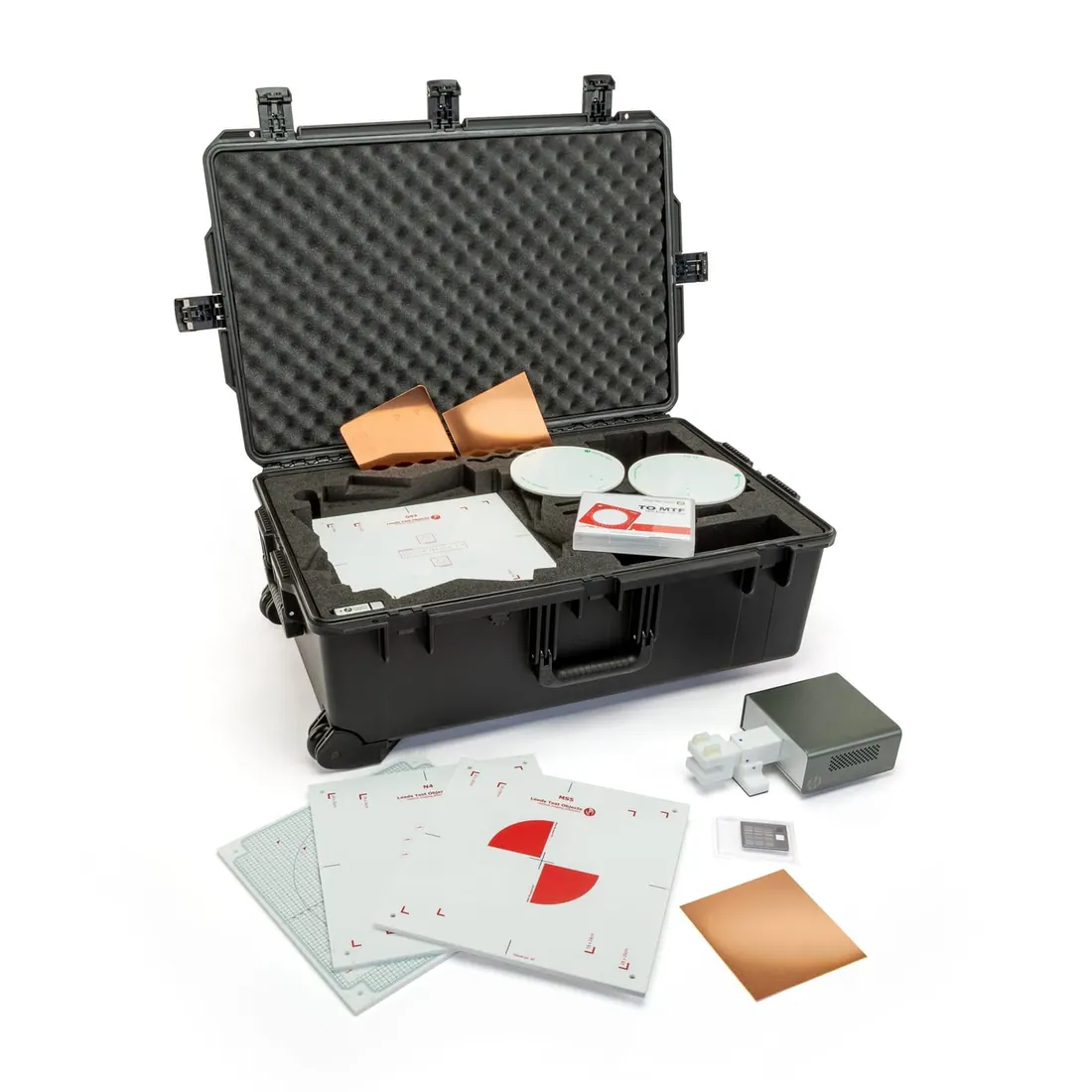

SFS-2
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
An updated screening fluoroscopy test object set for routine image quality checks. It pairs the TO10 and TO12 threshold contrast objects with contrast loss, geometry, mesh and resolution objects so trends in performance can be tracked over time.
Technical Specifications
| Parameter | Value |
|---|---|
| TO10 threshold contrast | 108 details (12 sizes x 9 contrasts), 11 mm to 0.25 mm, contrast 0.012 to 0.930 at 70 kVp with 1 mm Cu |
| TO12 threshold contrast | 108 details (12 sizes x 9 contrasts), 11 mm to 0.25 mm, contrast 0.0043 to 0.954 at 70 kVp with 1 mm Cu |
| Specification | TO N4 contrast loss test object, 19 details of 11 mm diameter |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
