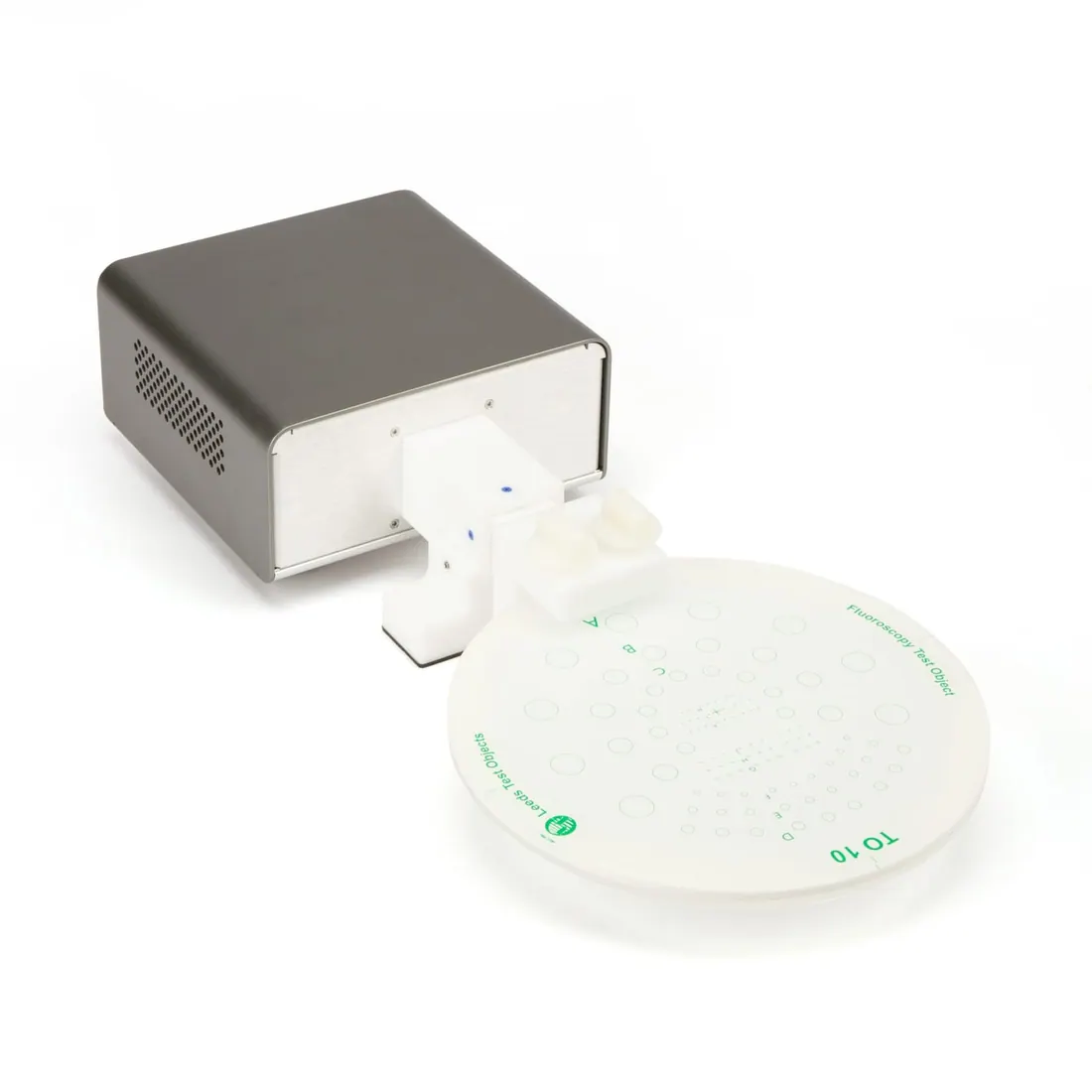

Motus Motion Platform
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A compact programmable motion arm that introduces controlled motion into quality assurance testing, addressing the limits of static tests on dynamic imaging systems. Leeds Test Objects phantoms clamp to the platform, and tilting the legs adds simultaneous Y axis motion.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Programmable Z axis motion, speed 0 to 7.5 cm/s, distance range 5 cm |
| Specification | Maximum error in timing 1.4%, typically within 0.3% of intended |
| Specification | Tilt legs to introduce simultaneous Y axis motion |
| Specification | Clamp to affix Leeds Test Objects phantoms, dependent on weight |
| Specification | Mains powered with USB interface, start and reset buttons |
| Specification | Stores the last program uploaded, free software included |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
