DSA 8/54
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

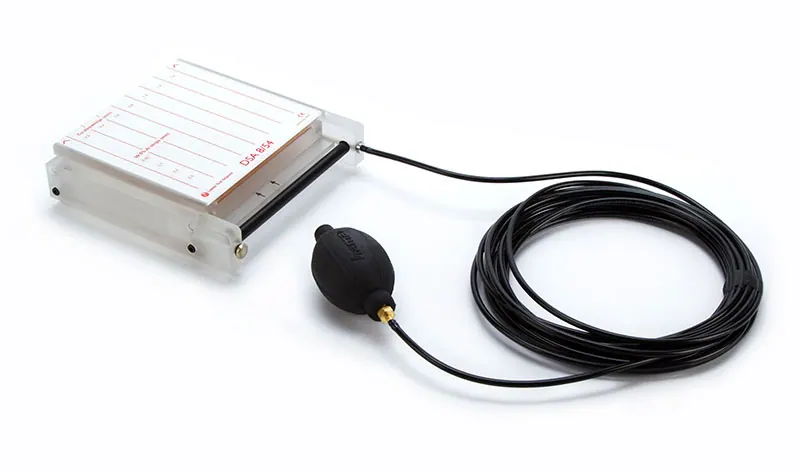

A constancy test phantom for digital subtraction angiography systems. A moveable PMMA insert carrying aluminium strips simulates blood vessels and is driven during the exposure by an attached pneumatic hand pump.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Cu stepwedge, 0.2 to 1.4 mm |
| Specification | Moveable PMMA insert with 4 aluminium strips of various thicknesses |
| Specification | Pneumatic hand pump included |
| Specification | Tests artefacts, dynamic range, logarithmic errors and contrast media sensitivity |
| Specification | Conforms to DIN 6868-8, DIN 6868-54 and IEC 61223-3-3 |
