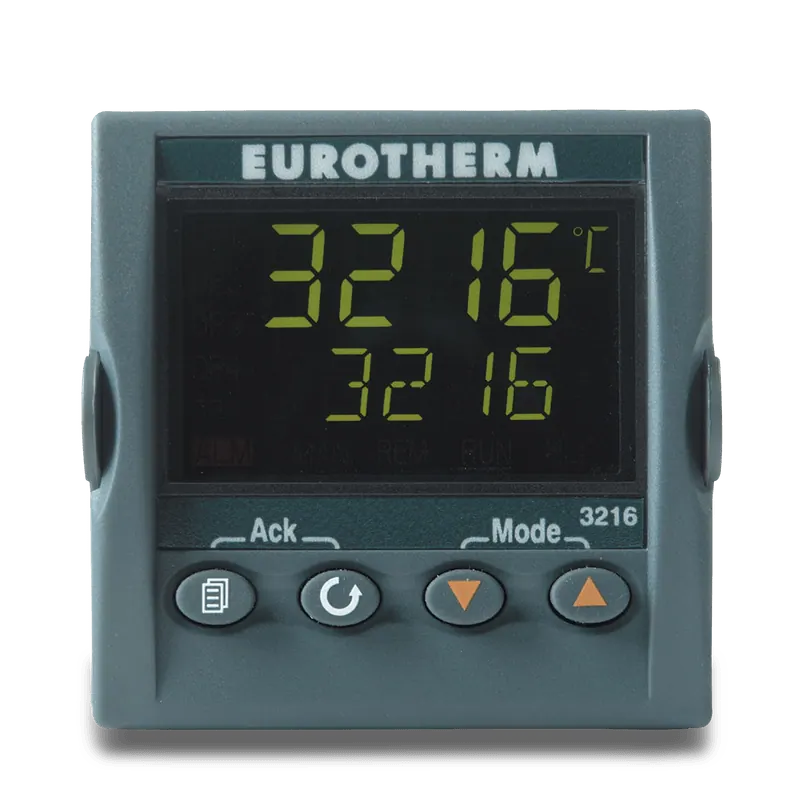

3216 Standard and Programmable Controller
Brand: Carbolite Gero | Category: Nanotechnology
A family of panel mounted controllers covering programmable and single ramp control. The 3216P1 runs up to 8 segments, the 3216P5 stores five programs, and the 3216CC provides PID control to set point with a 99 hour process timer.
Technical Specifications
| Parameter | Value |
|---|---|
| 3216P1 | up to 8 paired segments, each one ramp and one dwell, one program stored |
| 3216P5 | same functionality with up to 5 stored programs |
| 3216CC | PID control to set point with a 99 hour process timer and 3 timer functions |
| Specification | Simultaneous display of set-point and actual temperatures |
| Specification | High and low temperature alarms, navigation via 4 push buttons |
| Specification | Optional communications via RS232 or RS485 |
