57Co Mossbauer Sources in Rh Matrix
Brand: WissEl | Category: Nanotechnology

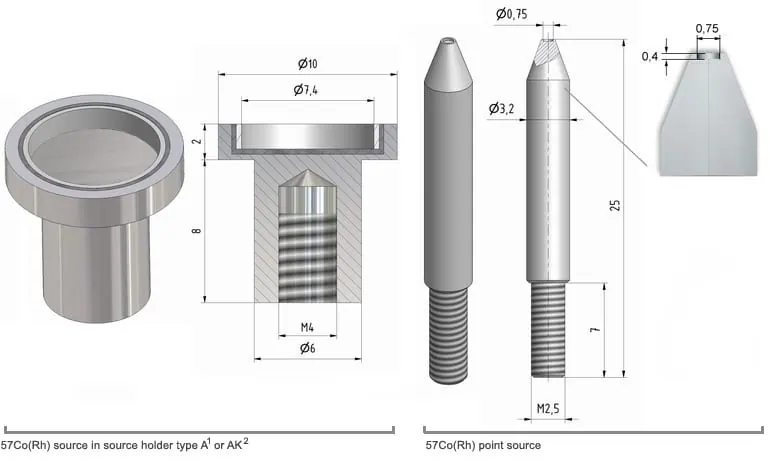

Cobalt 57 Mossbauer sources in a rhodium matrix, supplied in several holder types. The cryogenic holder has a laser welded aluminium window for use from liquid helium temperature upwards, and a low absorption holder uses a Kapton window.
Technical Specifications
| Parameter | Value |
|---|---|
| Cryogenic source holder | aluminium body with laser welded aluminium window |
| Cryogenic holder absorption of 14.4 keV radiation | 7 to 9.2 per cent |
| Cryogenic holder temperature range | liquid helium to 450 K |
| Low absorption holder | aluminium body with Kapton window |
| Low absorption holder absorption of 14.4 keV radiation | 0.5 to 1 per cent |
| Specification | Standard activities from 5 mCi (185 MBq) to 10 mCi (370 MBq) |
