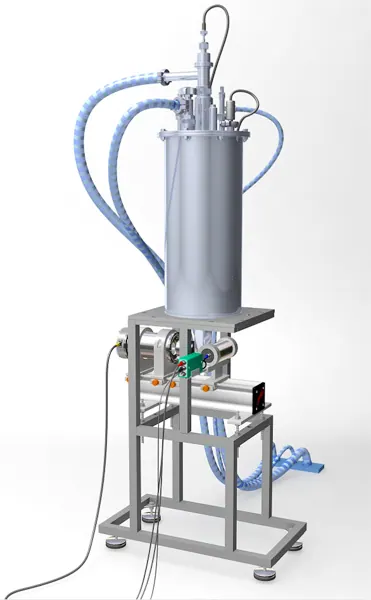

MB-600 Mossbauer Bench with Cryostat Stand
Brand: WissEl | Category: Nanotechnology
A Mossbauer bench that adds a cryostat stand to the optical track, so a bath cryostat, velocity transducer and detector can be aligned together. The sectional aluminium frame can be filled with sand or lead shot to add mass and damp vibration.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | approximately 23 to 25 kg with 650 mm optical track, cavities not filled |
| Length | 670 mm, or 738 mm with the 650 mm rail inserted |
| Width | 360 mm |
| Height | 780 mm, 820 to 900 mm with levelling elements |
| Specification | Sectional aluminium frame, fillable with sand or lead shot for damping |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about WissEl equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
