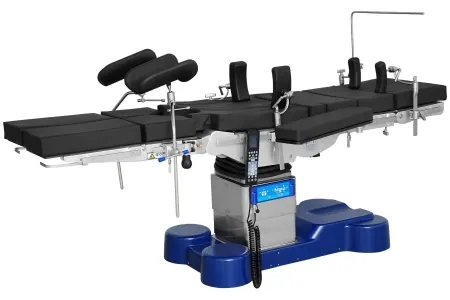

A106-5 Electric-Hydraulic Operating Table
Brand: Saikang Medical | Category: Medical Equipment
Electro-hydraulic operating table with a carbon fibre tabletop, 300 mm longitudinal sliding, electric kidney bridge, electric brake and posture memory. Rated to 360 kg and intended for orthopaedic, neurosurgical, spinal and image guided procedures.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Length/Width | 2150 × 550 mm ± 10 mm |
| Height Elevating/Lowering | 600-1100 mm ± 10 mm |
| Forward Tilt/Backward Tilt | 30° ± 3° / 30° ± 3° |
| Left Tilt/Right Tilt | 22° ± 3° / 22° ± 3° |
| Backrest (Up/Down) | 85° ± 3° / 45° ± 3° |
| Head Section (Up/Down) | 50° ± 3° / 90° ± 3° |
| Leg Section (Up/Down) | 80° ± 3° / 90° ± 3° |
| Leg Section Outward | 90° ± 3° |
| Kidney Bridge (Electric) | 100 mm ± 10 mm |
| Horizontal Sliding | 300 mm ± 10 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
