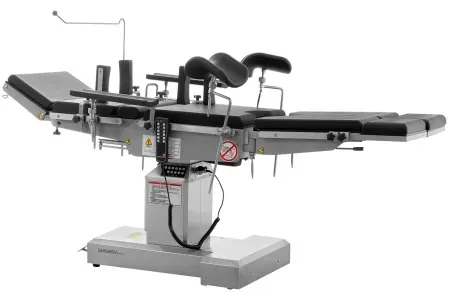

A301 Electric Operating Table (SKL-A)
Brand: Saikang Medical | Category: Medical Equipment
Electric operating table with 350 mm longitudinal sliding, electric positioning and kidney bridge elevation. The high strength radiolucent tabletop supports C-arm and X-ray work across orthopaedic, urological and gynaecological procedures.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Length/Width | 2000 × 555 mm ± 10 mm |
| Height Elevating/Lowering | 730-980 mm ± 10 mm |
| Forward Tilt/Backward Tilt | 24° ± 3° / 24° ± 3° |
| Left Tilt/Right Tilt | 23° ± 3° / 23° ± 3° |
| Backrest (Up/Down) | 66° ± 3° / 22° ± 3° |
| Head Section (Up/Down) | 30° ± 3° / 90° ± 3° |
| Leg Section (Up/Down) | 90° ± 3° / 90° ± 3° |
| Leg Section Outward | 90° ± 3° |
| Kidney Bridge | 110 mm ± 5 mm |
| Horizontal Sliding | 350 mm ± 5 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Older A301 literature shows different dimensions; these values follow the current linked product page. Confirm the supplied revision. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
