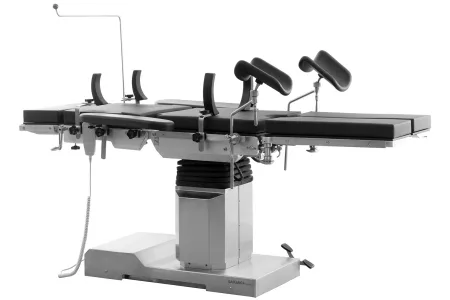

A202 Electro-Hydraulic Operation Table
Brand: Saikang Medical | Category: Medical Equipment
Every function on the A202 is controlled from the hand controller. The table has an air permeability and water permeability function. A mechanical brake device at the side of the base switches between fixed and moving positions, and is flexible and reliable in daily use.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Length/Width | 2020 × 500 mm ± 10 mm |
| Height Elevating/Lowering | 750-1050 mm ± 10 mm |
| Forward Tilt/Backward Tilt | 22±3°/25±3° |
| Left Tilt/Right Tilt | 20° ± 3° / 20° ± 3° |
| Backrest (Up/Down) | 70° ± 3° / 40° ± 3° |
| Head Section (Up/Down) | 42° ± 3° / 90° ± 3° |
| Leg Section Downward | 90° ± 3° |
| Leg Section Outward | 90° ± 3° |
| Kidney Bridge | 80 mm ± 10 mm |
| Horizontal Sliding | 300 mm ± 10 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
