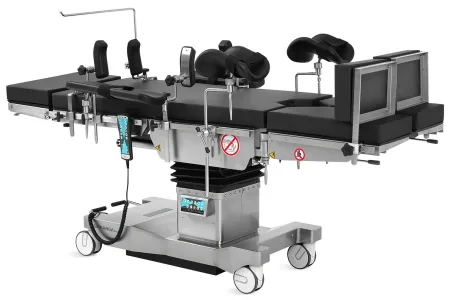

A100-4A Electric Operating Table (SKL-A)
Brand: Saikang Medical | Category: Medical Equipment
The leg plate is fitted with an imported gas spring, so it can be controlled with very little effort. This table is suitable for both X-ray and C-arm use, which makes it a practical choice where imaging is needed during surgery. Its housing follows a modern appearance design.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Length/Width | 2115 × 550 mm ± 10 mm |
| Height Elevating/Lowering | 710-1010 mm ± 10 mm |
| Forward Tilt/Backward Tilt | 24° ± 3° / 24° ± 3° |
| Left Tilt/Right Tilt | 23° ± 3° / 23° ± 3° |
| Backrest (Up/Down) | 80° ± 3° / 20° ± 3° |
| Head Section (Up/Down) | 55° ± 3° / 90° ± 3° |
| Leg Section (Up/Down) | 15° ± 3° / 90° ± 3° |
| Leg Section Outward | 90° ± 3° |
| Kidney Bridge | 140 mm ± 5 mm |
| Horizontal Sliding | 350 mm ± 5 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
