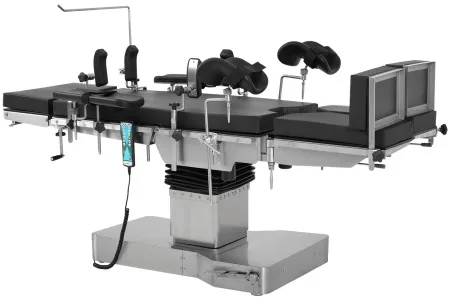

A100-4 Electric Operating Table (SKL-A)
Brand: Saikang Medical | Category: Medical Equipment
Leg boards on the A100-4 fold down and outwards and can be removed altogether, so the table adjusts easily to the needs of various surgical specialities. Its accessories are made of self-skinning materials. Movement can be stopped at any angle during an operation.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Length/Width | 2080 × 550 mm ± 10 mm |
| Height Elevating/Lowering | 700-1000 mm ± 10 mm |
| Forward Tilt/Backward Tilt | 24° ± 3° / 24° ± 3° |
| Left Tilt/Right Tilt | 23° ± 3° / 23° ± 3° |
| Backrest (Up/Down) | 80° ± 3° / 20° ± 3° |
| Head Section (Up/Down) | 50° ± 3° / 90° ± 3° |
| Leg Section (Up/Down) | 20° ± 3° / 90° ± 3° |
| Leg Section Outward | 90° ± 3° |
| Kidney Bridge | 140 mm ± 5 mm |
| Horizontal sliding | 300 mm ± 5 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
