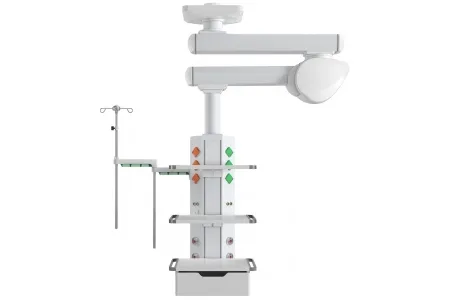

AINNO XL21 Electric Double-Arm Pendant
Brand: Saikang Medical | Category: Medical Equipment
Power is taken from the side of the box, where an internal supply covers both strong and weak electricity so that outlets are conveniently to hand. A hub stores excess cable, reflecting 6S site management principles and keeping the installation neat and organised. Tower and arms each rotate 340 degrees behind built-in limit devices that prevent drift, and the silent self-priming slide rails stay smooth after 10,000 push-pull tests while bearing 30kg.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Operating power supply | AC220V, 50Hz |
| Input power | 6KVA |
| Vertical box length | 1000mm |
| Hanging arm Rotation angle | 340° |
| Box Rotation angle | 340° |
| Hanging tower load-bearing capacity | 180kg |
| Instrument platform load-bearing capacity | 80kg |
| Listed bed height | 450mm |
| Protection class | IP20 |
| Instrument platform | 3 layers |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
