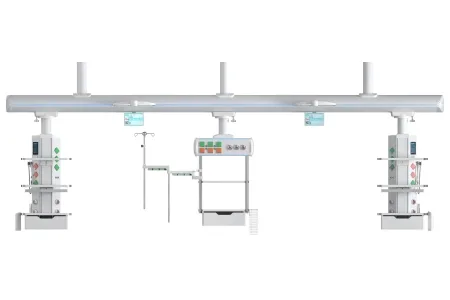

AINNO X81 ICU Medical Bridge Ceiling Pendant
Brand: Saikang Medical | Category: Medical Equipment
Operation of the X81 is by knob switch, easy and flexible, with a translation distance of ≥500mm. Horizontal translation across dry and wet areas positions the bridge accurately without drift so that care can be delivered from several directions, and both tower and arms rotate 340 degrees behind built-in limit devices. Silent self-priming slide rails stay smooth after 10,000 push-pull tests and can bear 30kg.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Operating power supply | AC220V, 50Hz |
| Input power | 6KVA |
| Bridge body length | 5000mm |
| Horizontal bos size | Length1000mm |
| Vertical box length | 1000mm |
| Left and right horizontal stroke | 500mm |
| Rotation angle | 340° |
| Hanging bridge load-bearing capacity | 450kg |
| Instrument platform load-bearing capacity | 80kg |
| Protection class | IP20 |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
