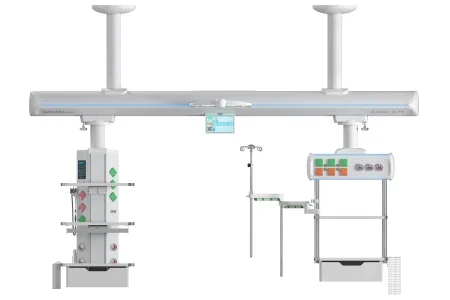

AINNO X71 ICU Medical Bridge Ceiling Pendant
Brand: Saikang Medical | Category: Medical Equipment
Built as a bridge pendant for intensive care, the X71 turns both its tower and its arms through 340 degrees, with built-in limit devices to prevent drift. Its modern streamlined form meets hospital laminar flow requirements while remaining lightweight and attractive, and a fully sealed design with no sharp corners saves floor space and helps prevent collisions. Silent self-priming slide rails remain smooth after 10,000 push-pull tests and can bear 30kg.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Operating power supply | AC220V, 50Hz |
| Input power | 6KVA |
| Bridge body length | 3000mm |
| Horizontal bos size | Length1000mm |
| Vertical box length | 1000mm |
| Left and right horizontal stroke | 500mm |
| Rotation angle | 340° |
| Hanging bridge load-bearing capacity | 300kg |
| Instrument platform load-bearing capacity | 80kg |
| Protection class | IP20 |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
