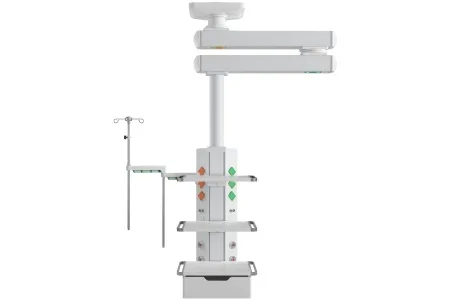

AINNO X22 Double-Arm Pendant
Brand: Saikang Medical | Category: Medical Equipment
An adjustable all-aluminium alloy instrument platform tops the AInno X22, its one-piece formed panel easy to clean and disinfect and its recessed anti-slip tabletop keeping instruments and devices seated safely. Telescopic extension arms let hospitals configure the pendant around their own workflow and can support accessories such as infusion rods and infusion pump stands. A drawer holds frequently used medical accessories and small clinical items, and the cable management design keeps power cables, data lines and device connections clear of the working area in operating rooms and ICUs.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Operating power supply | AC220V, 50Hz |
| Input power | 6KVA |
| Vertical box length | 1000mm |
| Hanging arm Rotation angle | 340° |
| Box Rotation angle | 340° |
| Hanging towerload-bearing capacity | 260kg |
| Instrument platform load-bearing capacity | 80kg |
| Protection class | IP20 |
| Instrument platform | 3 layers |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Operating Theatre & Surgical Lighting
- AINNO X71 ICU Medical Bridge Ceiling Pendant
Built as a bridge pendant for intensive care, the X71 turns both its tower and its arms through 340 degrees, with built-in limit devices to prevent drift. Its modern streamlined form meets hospital laminar flow requirements while remaining lightweight and attractive, and a fully sealed design with no sharp corners saves floor space and helps prevent collisions. Silent self-priming slide rails remain smooth after 10,000 push-pull tests and can bear 30kg.
- AINNO L21 Electric Double-Arm Pendant
Tower and arms alike rotate through 340 degrees on the L21, with built-in limit devices to prevent drift. The two rotating arms are compact and light to move, and can be adjusted to meet clinical demand out to a maximum coverage treatment radius of 1400mm. Silent self-priming slide rails remain smooth after 10,000 push-pull tests and can bear 30kg.
- AINNO X81 ICU Medical Bridge Ceiling Pendant
Operation of the X81 is by knob switch, easy and flexible, with a translation distance of ≥500mm. Horizontal translation across dry and wet areas positions the bridge accurately without drift so that care can be delivered from several directions, and both tower and arms rotate 340 degrees behind built-in limit devices. Silent self-priming slide rails stay smooth after 10,000 push-pull tests and can bear 30kg.
