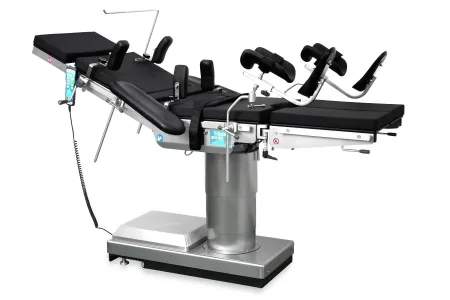

A501 Electric-Hydraulic Operating Table
Brand: Saikang Medical | Category: Medical Equipment
Thoracic-abdominal surgery, neurosurgery, ENT surgery, obstetrics and gynaecology, urology and orthopaedics are all served by the A501, whose radiolucent tabletop lets a single table cover both routine procedures and imaging-assisted work. Two independent control systems, one hand controller and one side controller, keep the table fully operable if either becomes unavailable, and an emergency stop switch is provided for table adjustment. Base cover, column cover, side panels and rails are high-quality 304 stainless steel, and the covers can be removed easily for inspection and servicing, while a built-in emergency power supply charges automatically and takes over during a mains failure. The tabletop rotates 180 degrees horizontally, an integrated kidney bridge supports urology and abdominal work, and a 5cm memory foam mattress with anti-yellowing, mould-proof PU leather upholstery carries the patient.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Length/Width | 2125 × 550 mm ± 10 mm |
| Height Elevating/Lowering | 630-980 mm ± 10 mm |
| Forward Tilt/Backward Tilt | 20° ± 3° / 15° ± 3° |
| Left Tilt/Right Tilt | 15° ± 3° / 15° ± 3° |
| Backrest (Up/Down) | 85° ± 3° / 35° ± 3° |
| Head Section (Up/Down) | 55° ± 3° / 90° ± 3° |
| Leg Section (Up/Down) | 15° ± 3° / 90° ± 3° |
| Leg Section Outward | 90° ± 3° |
| Kidney Bridge | 120 mm ± 10 mm |
| Horizontal Sliding | 320 mm ± 10 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
