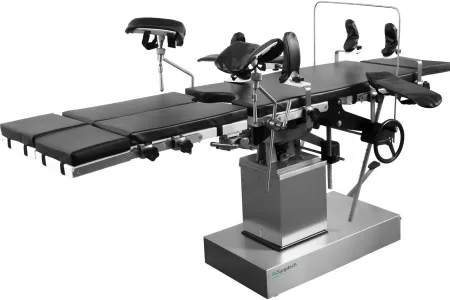

AM052C-1 Manual Operating Table (SK1F-R)
Brand: Saikang Medical | Category: Medical Equipment
High-quality 304 stainless steel is used for the base seat and upright column cover of this manual table, giving corrosion resistance and easier cleaning in basic operating room environments. Table movements run on a hydraulic pneumatic system together with a mechanical driven system and can be adjusted from both sides, while a foot-step hydraulic elevating system changes height without electric power and uses an imported Y-type sealing ring for durability. A foot treadle brake device makes the table straightforward to move and position. Leg plates with servo-assisted gas springs and handle operation fold down and rotate outward for urology, anorectal and other routine procedures, and the mattress is a one-piece seamless high-density memory sponge wrapped in imported artificial leather.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Length/Width | 2040×480mm±10mm |
| Height Elevating/Lowering | 790-1040 mm ± 10 mm |
| Forward/Backward Tilt | 30°± 3°/20°±3° |
| Left/Right Tilt | 17° ± 3° |
| Backrest (Up/Down) | 75° ± 3° / 18° ± 3° |
| Head Section (Up/Down) | 45° ± 3° / 90° ± 3° |
| Leg Section Downward | 90° ± 3° |
| Leg Section Outward | 90° ± 3° |
| Kidney Bridge | 115 mm ± 5 mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
