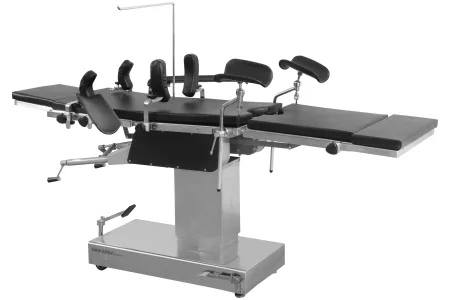

AM061T-2 Manual Operating Table
Brand: Saikang Medical | Category: Medical Equipment
Configured as a comprehensive multi-function type, this table covers a broad spread of surgical work. Various actions are controlled by an electric hydraulic system. A built-in kidney bridge is integrated, which is more convenient in use and keeps the appearance neat.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External Size(LxWxH) | 1940x480x770-1020mm |
| Built-in Kidney Bridge | 0-120 mm |
| Back Plate Up/Down | 80°/10° |
| Head Plate Up/Down | 60°/90° |
| Trendelenburg/Reverse Trendelenburg | 25°/25° |
| Lateral Tilt Left/Right | 20°/20° |
| Leg Plate Down | 90° |
| Patient Weight Capacity | 250 kg |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
