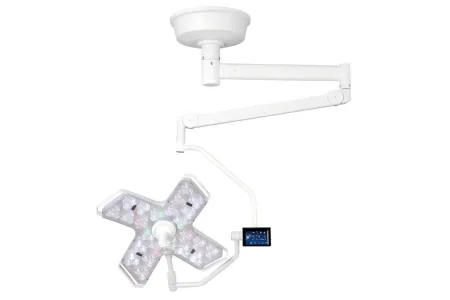

AINNO LIGHT 10 Shadowless Lamp
Brand: Saikang Medical | Category: Medical Equipment
Multi-patch superposition technology keeps the light spot uniform across the surgical field. Intelligent shadow management links the dual light heads so that supplementary lighting stays even, and the centralised camera can be shared quickly between different operating rooms. Central illuminance reaches 160000 lx over 10 levels, light field diameter runs 200-300mm over 5 levels, colour temperature is adjustable from 4000 to 5500K over 9 levels and the colour rendering index is above 90.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Central illuminance（Ec） | 160000 lx (10 levels) |
| Light field diameter（d10） | 200-300mm (5 levels) |
| Light field d50/d10 | 50% |
| Depth of illumination（20%） | 1200mm |
| Depth of illumination（60%） | 800mm |
| Special Color Rendering Index (R9) | ＞95 |
| Ee/Ec | ≤3.5 mW/（m².lx) |
| Shadow dilution with tube | 100% |
| Shadow dilution with one mask | 65% |
| Shadow dilution with tube and one mask | 55% |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
