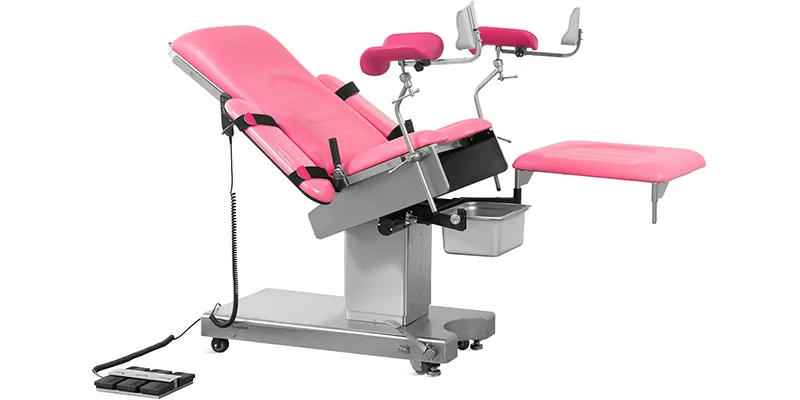

A99-5 Electric Obstetric Bed
Brand: Saikang Medical | Category: Medical Equipment
The A99-5 uses a high quality 304 stainless steel chassis cover with seamless robotic welding for stability, easier cleaning and long service in delivery rooms and maternity departments. A high density memory foam mattress in a seamless one piece design supports comfort, antibacterial performance and quick room turnover. Both a hand controller and a foot pedal control are supplied, the leg support integrates a stirrup function with straps, and the arm support fixes at multiple angles with straps. An auxiliary table folds 90 degrees outwards for use as an instrument table and detaches when it is not needed.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Size(L × W × H) | 1985×665×675 mm±10 mm |
| Height Adjustment Stroke | 675-975mm±10mm |
| Back Plate Up | 55°±3° |
| Back Plate Down | 10°±3° |
| Seat Plate Up | 20°±3° |
| Seat Plate Down | 10°±3° |
| Leg board evagination | 90± 3° |
| Safe Working Load | ≥135kg |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
