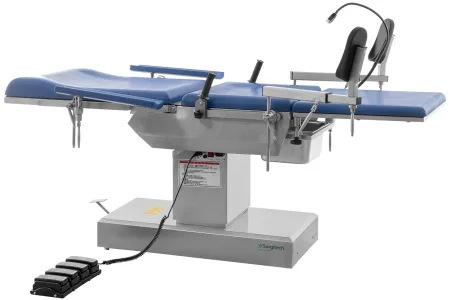

A99-13 Electric Obstetric Bed
Brand: Saikang Medical | Category: Medical Equipment
High quality 304 stainless steel forms the base structure of the A99-13. Every movement is driven from a foot pedal controller, leaving the hands free. A pedal brake makes the bed easy to move and to lock in position.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Size (L × W × H) | 1860×600×730 mm±10 mm |
| Height Adjustment Range | 730 – 980 mm±10 mm |
| Trendelenburg / Reverse Trendelenburg | 22°±3° / 22°±3° |
| Back Plate Up | 50°±3° |
| Seat Plate Up | 16°±3° |
| Leg Plate Outward Rotation | 90°±3° |
| Armrest Outward Rotation | 180°±3° |
| Safe Working Load | ≥ 275 kg |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
