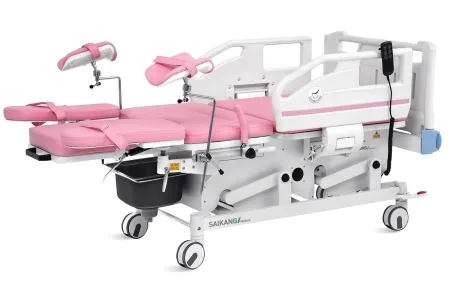

A98-4 Electric Obstetric Bed
Brand: Saikang Medical | Category: Medical Equipment
Virgin ABS material is used for the head board and side rail of the A98-4, and the head board itself is movable. The hand bar dismounts and can be repositioned. The leg support also dismounts and is movable.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| External Size (LxWxH) | 2050x960x640mm±10mm |
| Height Adjustment Stroke | 640-1000±10mm |
| Reverse Trendelenburg | 10°±3º |
| Trendelenburg | 10°±3º |
| Back-rest Adjustment | 70°±3º |
| Leg plate up | 80°±3º |
| Leg plate down | 45±3°,detachable |
| Safe Working Load | ≥200kg |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Clinical workflow, room layout and required movement/positioning
- Model-specific load or illumination requirements and mounting arrangement
- Controls, accessories, utilities, installation and acceptance checks
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
More from Examination, Gynaecology & Delivery
- A99-13 Electric Obstetric Bed
High quality 304 stainless steel forms the base structure of the A99-13. Every movement is driven from a foot pedal controller, leaving the hands free. A pedal brake makes the bed easy to move and to lock in position.
- A98-3 Electric Obstetric Bed (K)
One hand controller operates the powered movements on the A98-3. The handrail rotates, which makes transferring the mother onto and off the bed easier. The hand bar can be dismounted and moved.
- A99-5 Electric Obstetric Bed
The A99-5 uses a high quality 304 stainless steel chassis cover with seamless robotic welding for stability, easier cleaning and long service in delivery rooms and maternity departments. A high density memory foam mattress in a seamless one piece design supports comfort, antibacterial performance and quick room turnover. Both a hand controller and a foot pedal control are supplied, the leg support integrates a stirrup function with straps, and the arm support fixes at multiple angles with straps. An auxiliary table folds 90 degrees outwards for use as an instrument table and detaches when it is not needed.
