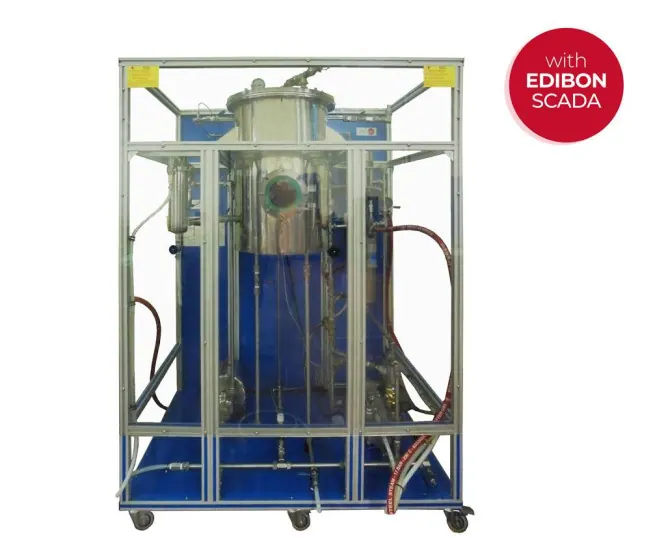

AEDC: Computer Controlled Deodorizing Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A batch deodorising unit that performs vacuum steam distillation at low pressure and high temperature. It removes the volatile compounds that carry odour and flavour from edible oil, and lets students study how pressure, temperature and steam rate affect the result.
Technical Specifications
| Parameter | Value |
|---|---|
| Working volume | 25 l |
| Overall volume | 60 l |
| Filter element size | 5.0 micron |
| Flow sensor to measure the coil water flow, range | 1.5 to 30 l/min |
| Specification | This vessel also includes a security valve to limit the working pressure to 2 bar |
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz or 190 VAC to 240 VAC/60 Hz, 5 kW |
