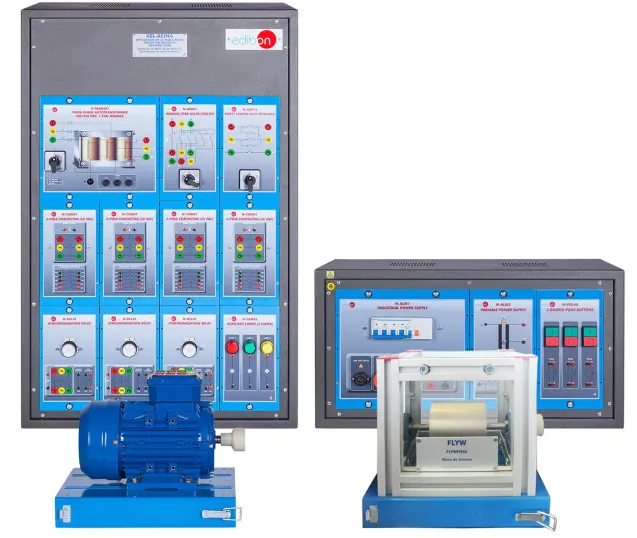

AEL-ACINA: Application of AC Three-Phase Induction Motor of Squirrel Cage
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the manoeuvres performed on squirrel cage induction motors in industry, wired by the student using commutators, timers and contactors. Direct on line starting, reversing and sequenced control are all built up from the modules on the rack.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 640 x 320 x 920 mm |
| Weight | 35 kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Nominal voltage | 24 VAC |
