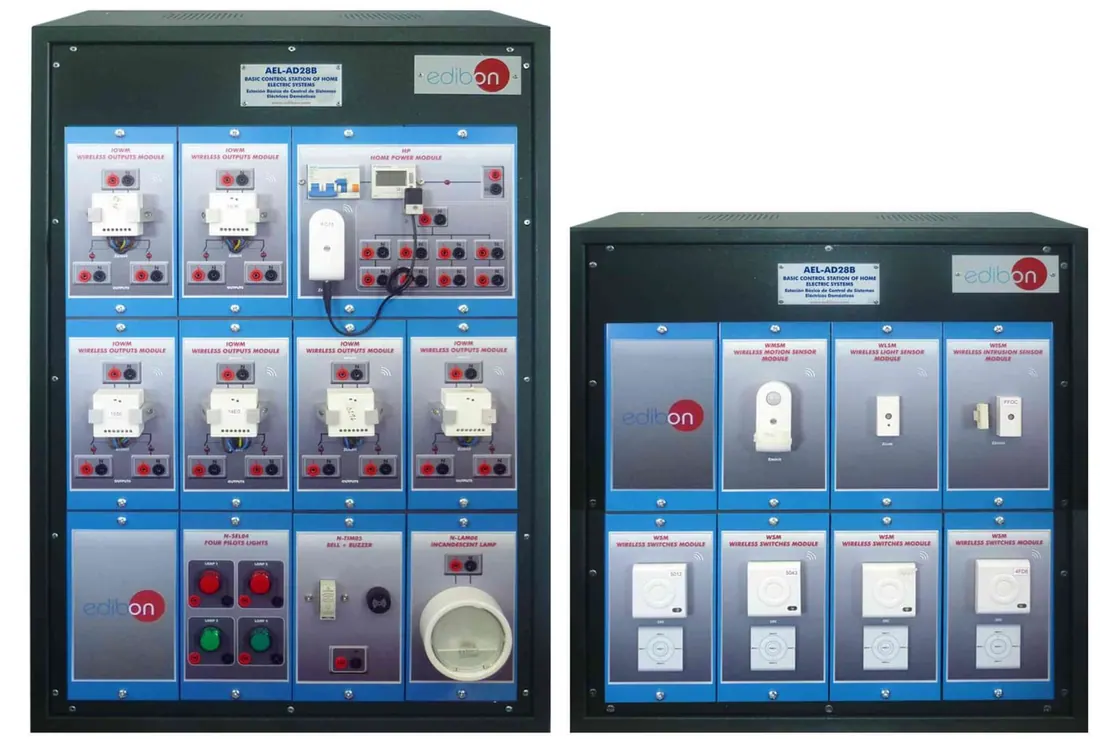

AEL-AD28B: Advanced Home Automation Application with ZigBee Wireless Protocol
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A wireless home automation trainer focused on the safety system and the energy management system. Students program several control configurations over the ZigBee protocol and simulate different real situations with the modules supplied.
Technical Specifications
| Parameter | Value |
|---|---|
| N-HPM Home Power Module | supply voltage 230 VAC with residual current circuit breaker and power meter |
| Specification | Home Power Module provides eight supply output ports and an energised circuit LED |
| Specification | Zmeter wireless power meter able to switch the circuit on and off, powered by two AAA batteries |
| Specification | Includes N-IOWM wireless output module, N-LAM16 lamp module and N-SEL04 selector module |
| Specification | N-TIM05 timer module included |
| Specification | Communication over the ZigBee wireless protocol |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
