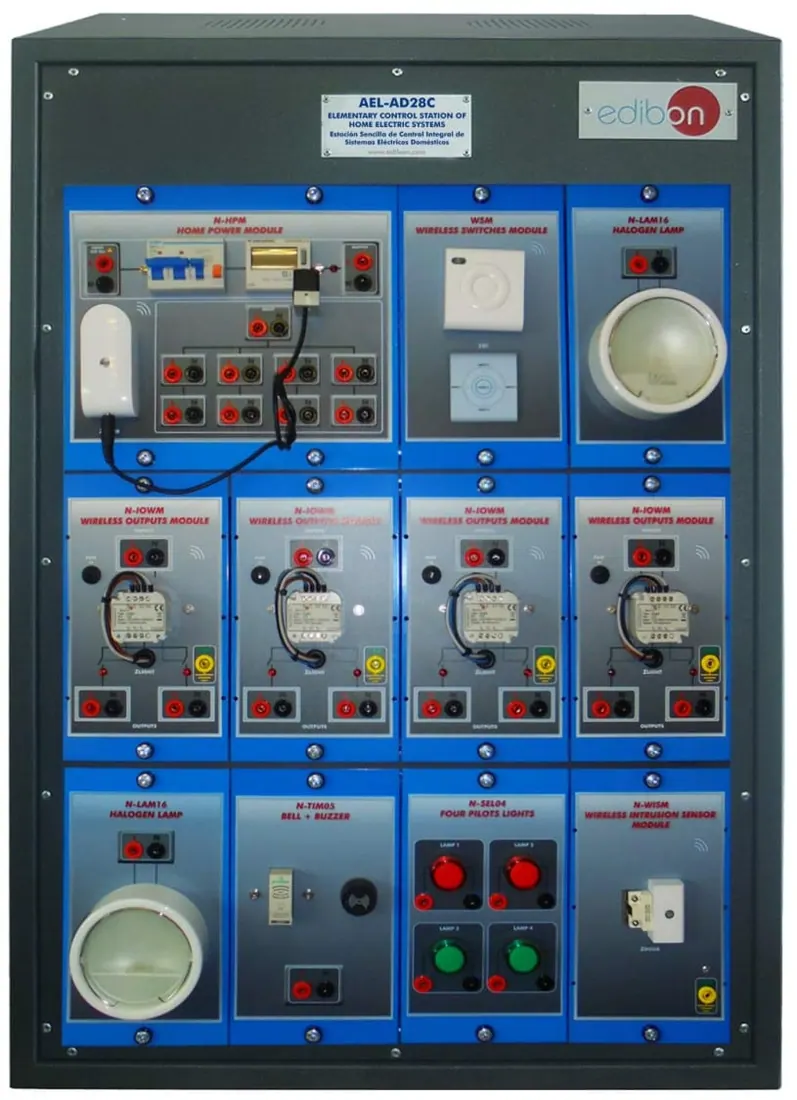

AEL-AD28C: Home Automation Application with ZigBee Wireless Protocol
Brand: EDIBON | Category: Scientific & Laboratory Equipment
An entry level wireless home automation trainer covering lighting control, energy management and wireless intrusion detection. Students build several configurations with the supplied software and study how the ZigBee protocol carries the commands.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Four N-IOWM Wireless Output Modules, supply voltage 230 VAC, 2 A fuse |
| Specification | Each output module gives two 230 VAC outputs with pilot lights |
| ZLight wireless module | maximum power 50 W, supply voltage range 85 to 263 V, 50/60 Hz |
| Specification | ZLight transmission range 100 m outdoors and 30 m indoors |
| Specification | Sixteen transmission channels from 2.405 to 2.480 GHz |
| Specification | Includes N-HPM Home Power Module, N-LAM16 lamp module and N-SEL04 selector module |
