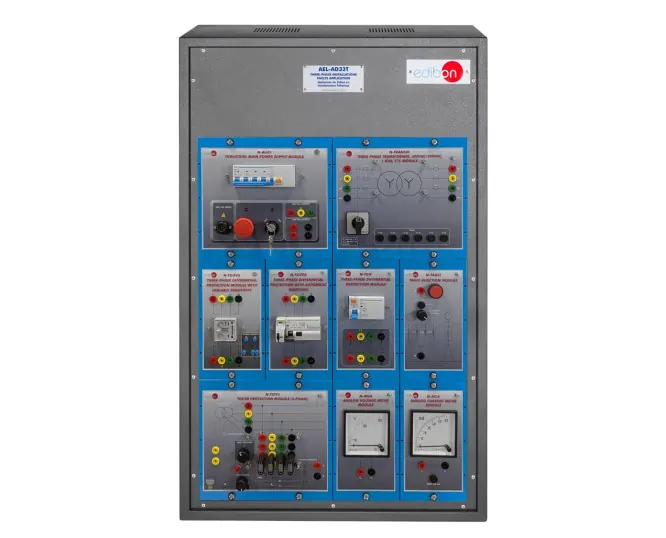

AEL-AD33T: Three-phase Installations Faults Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the protective devices used in three-phase industrial installations. Students introduce different faults through the safety elements and verify which protection acts in each case and the reason for its operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 640 x 320 x 920 mm |
| Weight | 60 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Nominal supply voltage | 3x 400 VAC (3PH+N) |
