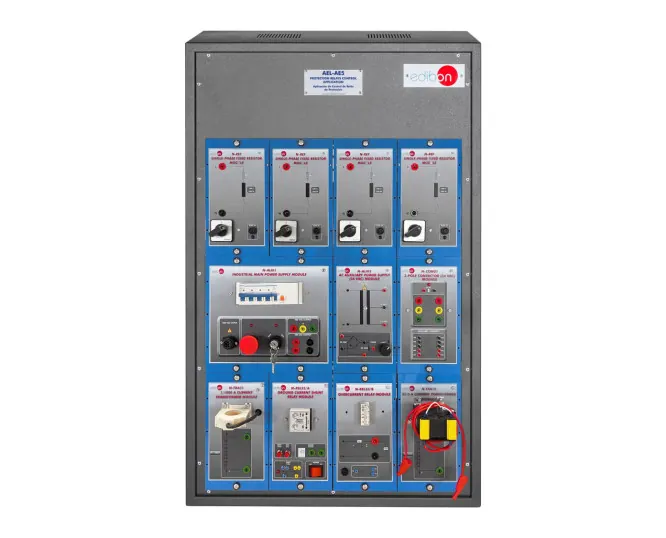

AEL-AE5: Protection Relays Control Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the operation of protection relays, including overcurrent relays that open the circuit when a previously configured current level is detected. Students set the relay characteristics and confirm the tripping behaviour under test.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 640 x 320 x 920 mm |
| Weight | 60 kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Supply voltage (Single-Phase) | 230 VAC, 1PH + N |
