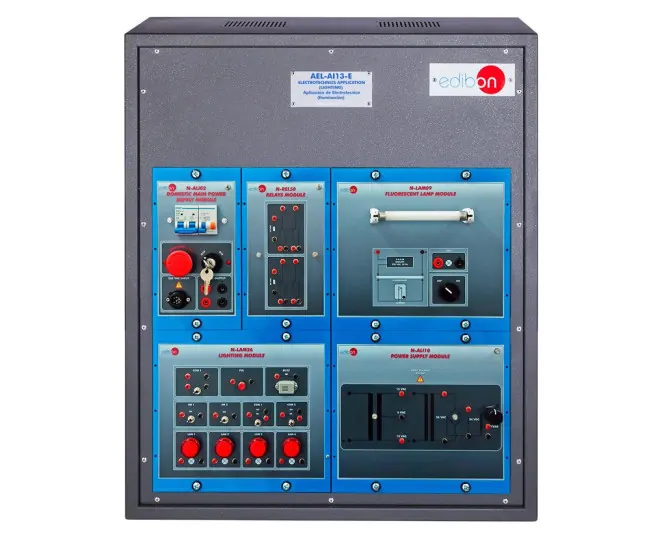

AEL-AI13-E: Electrotechnics Application (Lighting)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Aimed at students beginning electrical work, this application makes the difference between series and parallel connection clear using lighting devices. Different lamps are wired and the effect of each connection on the circuit is measured.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 640 x 320 x 920 mm |
| Weight | 45 Kg approx |
| Supply voltage (single-phase) | 230 VAC, 1PH + N |
| Nominal voltage | 230 VAC (PH + N) MED65 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
