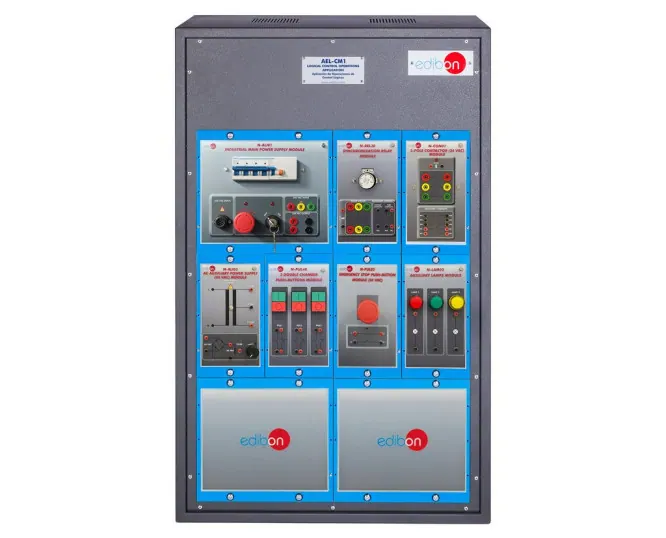

AEL-CM1: Logical Control Operations Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the basic logic control operations used in industry, built from timers, push buttons, signalling lamps, contactors and thermal relays. Students wire each combination on the rack and follow the control sequence that results.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 640 x 320 x 920 mm |
| Weight | 60 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Nominal voltage | 24 VAC |
