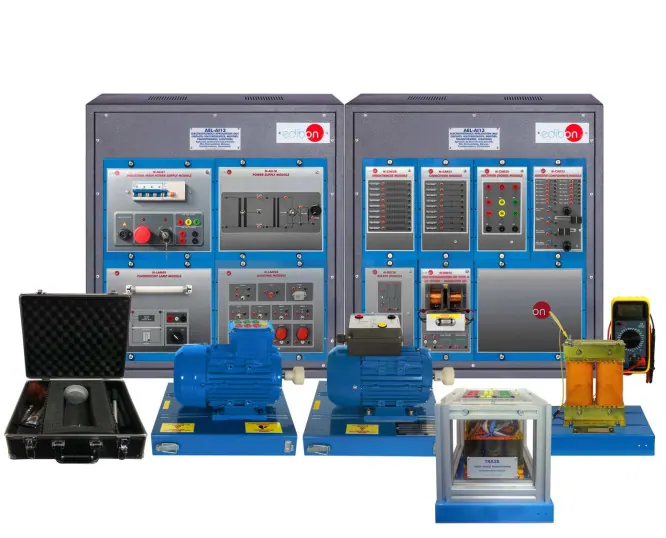

AEL-AI13: Electrotechnics Application (RLC Circuits, Electrostatics, Motors, Transformers, Lighting)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A general electrotechnics rack covering electric circuits, static electricity, magnetism, motors, transformers and lighting. It gives students starting an electrical course a single platform on which each of those topics can be wired and measured.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 640 x 320 x 670 mm |
| Weight | 50 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Supply voltage (single-phase) | 230 VAC, 1PH + N |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
