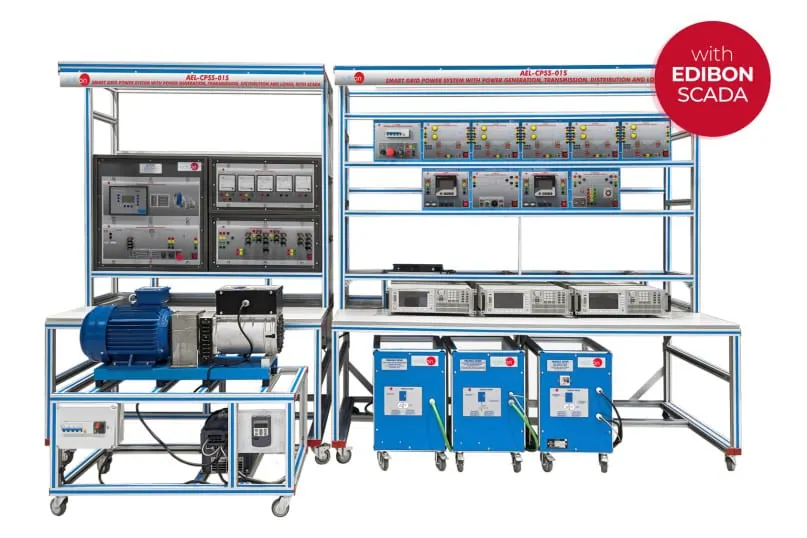

AEL-CPSS-01S: Smart Grid Power System with Power Generation, Transmission, Distribution and Loads, with SCADA
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Reproduces the structure and operation of a real electrical network at laboratory scale, from generation through transmission and distribution to the loads. The SCADA system supervises the whole chain so overall network behaviour can be studied experimentally.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 2000 x 400 x 3000 mm |
| Weight | 200 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Measuring range | 0 - 5 kW |
