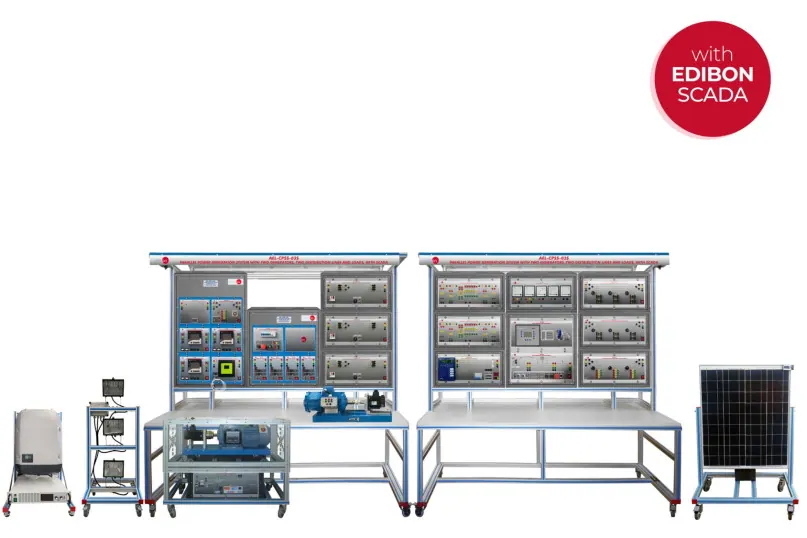

AEL-CPSS-03S: Parallel Power Generation System with two Generators, two Distribution Lines and Loads, with SCADA
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers parallel operation of two generators feeding two distribution lines and a set of loads. Students synchronise the machines, share active and reactive load between them and follow the whole process from the SCADA system.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 2000 x 400 x 2000 mm |
| Weight | 100 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Nominal voltage | 1 kVA |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
