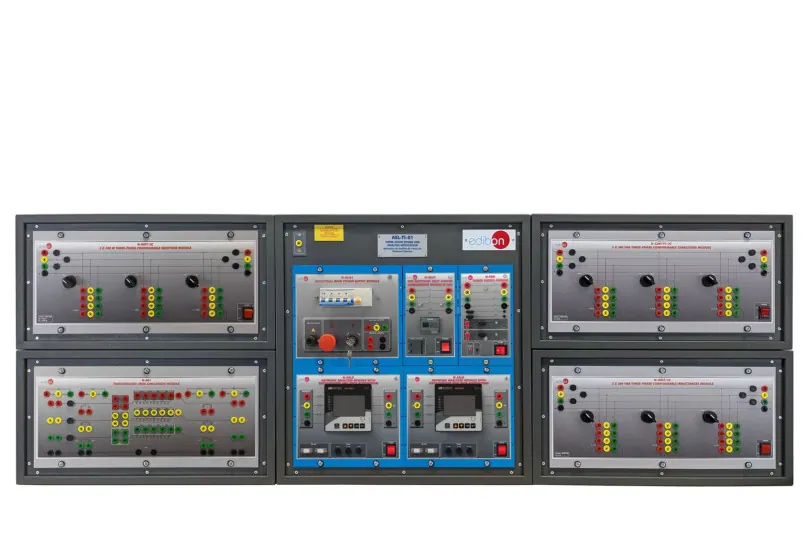

AEL-TI-01: Three-Phase Power Line Analysis Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the characteristics of overhead lines using an aerial line module configurable with different resistance, inductance and capacitance values. Students measure voltage drop, losses and the behaviour of the line under different load conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 3000 x 450 x 1000 mm |
| Weight | 100 Kg approx |
| Supply voltage | 400 VAC, 3PH + N |
| Line and neutral nominal current | 10 A |
