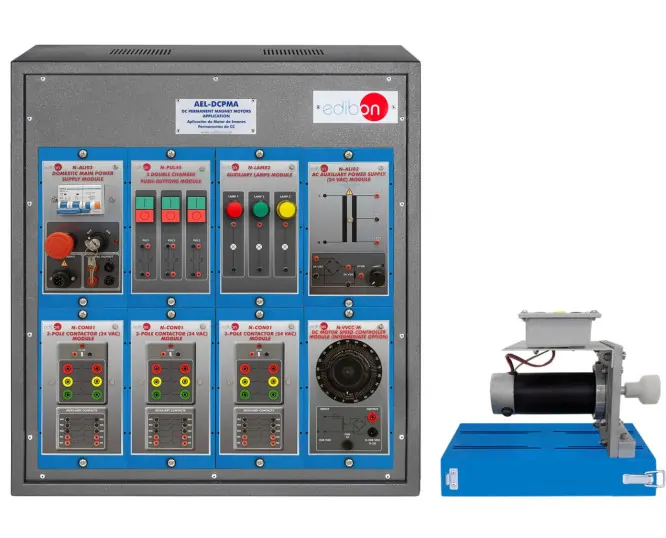

AEL-DCPMA: DC Permanent Magnet Motors Application
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Covers the operations performed with permanent magnet DC motors, wired by the student using commutators, timers and contactors. Starting, reversing and speed control are studied together with the behaviour of the machine under load.
Technical Specifications
| Parameter | Value |
|---|---|
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz |
| Dimensions | 640 x 320 x 670 mm |
| Weight | 25 kg approx |
| Supply voltage (single to phase) | 230 VAC, 1PH + N |
| Nominal voltage | 24 VAC |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
